X-groove Series
Type of Gasket & Seal Function, Size Variations and Selection

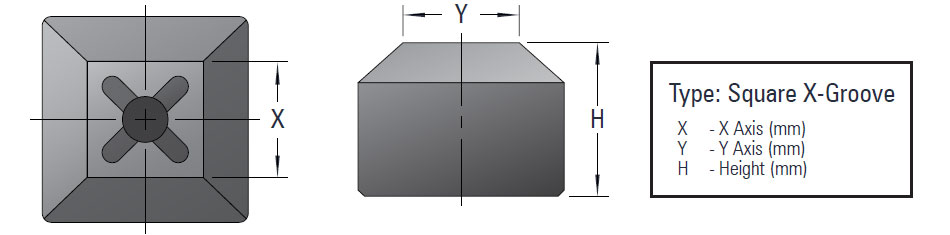

Square Series - (XSE).
No Part Number Step
(mm)		 X : Y Diameter (ØID) Fitting Height
Inch mm Inch mm mm mm
1 XSE-040 0.20 0.040 1.00 0.020 0.50 1.70 3.30
2 XSE-040_A 0.20 0.040 1.00 0.020 0.50 1.60 3.30
3 XSE-051_A 0.20 0.050 1.30 0.020 0.50 1.70 3.30
4 XSE-080 - 0.040 2.00 0.040 1.00 1.70 3.30
5 XSE-100_REV1 0.20 0.100 2.54 0.040 1.00 2.50 3.30
6 XSE-120 0.20 0.120 3.00 0.040 1.00 1.70 3.30
7 XSE-150_REV1 0.20 0.150 3.81 0.040 1.00 2.50 3.30
8 XSE-200 0.20 0.200 5.00 0.040 1.00 2.50 3.30
9 XSE-250 0.20 0.250 6.35 0.040 1.00 2.50 3.30
10 XSE-276 0.20 0.276 6.00 0.040 1.00 2.50 3.30
11 XSE-300 0.20 0.300 7.62 0.040 1.00 2.50 3.30

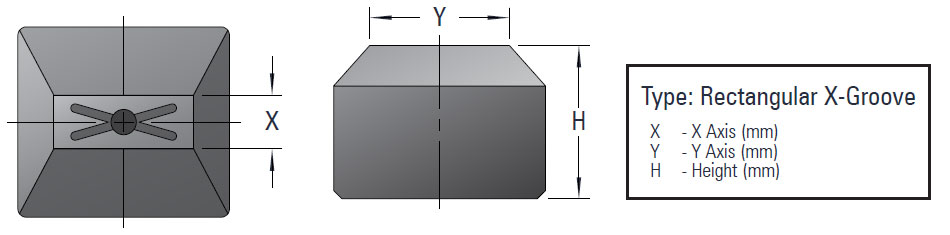

Rectangular Series - (XST).
No Part Number Step
(mm)		 X (Length) Y (Width) Diameter (ØID) Fitting Height
Inch mm Inch mm mm mm mm
1 XST-050130 0.20 0.050 1.27 0.130 3.30 0.60 1.50 3.30
2 XST-070110 0.20 0.070 1.77 0.110 2.79 0.60 1.50 3.30
3 XST-080170_REV1 0.20 0.080 2.03 0.170 4.32 1.00 2.50 3.30
4 XST-080180 0.20 0.080 2.00 0.180 4.50 1.00 1.70 3.30
5 XST-100150_REV1 0.20 0.100 2.54 0.150 3.81 1.00 2.50 3.30
6 XST-100250 0.20 0.100 2.54 0.250 6.35 1.00 2.50 3.30
7 XST-100300 0.20 0.100 2.54 0.300 7.62 1.00 2.50 3.30
8 XST-118177  - 0.118 3.00 0.177 4.50 0.60 1.50 3.60
9 XST-150200 0.20 0.150 3.80 0.200 5.10 1.00 2.50 3.30
10 XST-150250 0.20 0.150 3.80 0.250 6.35 1.00 2.50 3.30
11 XST-150275 0.20 0.150 3.81 0.275 7.00 1.00 2.50 3.30
12 XST-150300 0.20 0.150 3.81 0.300 7.62 1.00 2.50 3.30
13 XST-157196  - 0.157 4.00 0.196 5.00 1.00 2.60 3.30
14 XST-160350 0.20 0.160 4.06 0.350 8.89 1.00 2.50 3.30
15 XST-175200 0.20 0.175 4.44 0.200 5.08 1.00 2.50 3.30
16 XST-175250 0.20 0.175 4.44 0.250 6.35 1.00 2.50 3.30
17 XST-175300 0.20 0.175 4.44 0.300 7.62 1.00 2.50 3.30
18 XST-175350 0.20 0.175 4.44 0.200 8.89 1.00 2.50 3.30
19 XST-180315 0.20 0.180 4.57 0.315 8.00 1.00 2.50 3.30
20 XST-190360 0.20 0.190 4.83 0.360 9.14 1.00 2.50 3.30
21 XST-195222 0.20 0.195 4.95 0.222 5.65 1.00 2.50 3.30
22 XST-200250 0.20 0.200 5.08 0.250 6.35 1.00 2.50 3.30
23 XST-200275 0.20 0.200 5.08 0.275 6.99 1.00 2.50 3.30
24 XST-200300 0.20 0.200 5.08 0.300 7.62 1.00 2.50 3.30
25 XST-200325 0.20 0.200 5.08 0.325 8.25 1.00 2.50 3.30
26 XST-200350 0.20 0.200 5.08 0.350 8.89 1.00 2.50 3.30
27 XST-215325 0.20 0.215 5.46 0.325 8.25 1.00 2.50 3.30
28 XST-217315 0.20 0.216 5.50 0.315 8.00 1.00 2.50 3.30
29 XST-225300 0.20 0.225 5.71 0.300 7.62 1.00 2.50 3.30
30 XST-225375 0.20 0.225 5.71 0.375 9.53 1.00 2.50 3.30
31 XST-230570 0.20 0.230 5.88 0.570 14.40 1.00 2.50 3.30
32 XST-250275 0.20 0.250 6.35 0.275 6.99 1.00 2.50 3.30
33 XST-250300 0.20 0.250 6.35 0.300 7.62 1.00 2.50 3.30
34 XST-250325 0.20 0.250 6.35 0.325 8.25 1.00 2.50 3.30
35 XST-250350 0.20 0.250 6.35 0.350 8.89 1.00 2.50 3.30
36 XST-250450 0.20 0.250 6.35 0.450 11.43 1.00 2.50 3.30
37 XST-268398 0.20 0.268 6.80 0.398 10.10 1.00 2.50 3.30
38 XST-275300 0.20 0.275 6.99 0.300 7.62 1.00 2.50 3.30
39 XST-315433 0.20 0.315 8.00 0.433 11.00 1.00 2.50 3.30
40 XST-320340 0.20 0.320 8.13 0.340 8.64 1.00 2.50 3.30
41 XST-350475 0.20 0.350 8.89 0.475 12.06 1.00 2.50 3.30
42 XST-390450 0.20 0.390 10.00 0.450 11.38 1.00 2.50 3.30
